"Sabrina" folding Travel Wheel
weight of Single Treadle wheel is approx. 7.4 lbs* !
(weight of Double Treadle wheel is approx 9.6 lbs*)
Single or Double Treadle available,

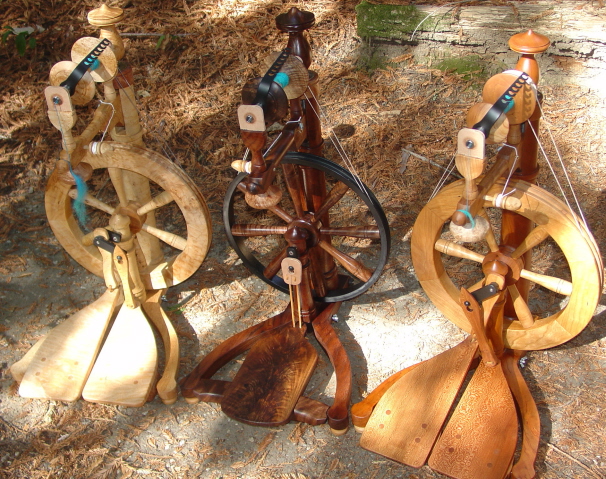

Cherry wood wheels shown below



Wheel shown folded above, Mother of All is removable as shown for smaller package size. Height when folded for double treadle is between 9 and 9.5 inches. Folded height for Single Treadle is 8 inches

Superbly crafted Carry Bags are also available on Etsy for the Sabrina Travel wheel (subject to availability, but also available by commission) Link to Etsy Carry Bag shop below: http://www.etsy.com/shop/woolthing

Sabrina Folding Wheel Price List (U.S. Dollar)
Base pricing reflects Single Treadle,
Double Treadle at additional cost shown in "Options" below

$620 for Cherry wood

$655  Eastern, or American Walnut


$800-$950 Claro (California) Walnut depending on amount of figure

(Walnut subject to current availability)

BIRDSEYE MAPLE AND SWISS PEAR WHEELS WILL BE DISCONTINUED AFTER CURRENT SUPPLY IS USED UP
$805 for Birdseye Maple, Swiss Pear (Both woods subject to availability)

BASTOGNE WALNUT WHEELS WILL BE DISCONTINUED AFTER CURRENT SUPPLY IS USED UP
$1,000+ (!) for Bastogne Walnut (price and availability depends on what grade of Bastogne can be found at time of order. Bastogne walnut does not reproduce like other trees, and is a rare commodity. As such it commands a ridiculously high sum...)

Please e-mail for price quote using any woods not listed above.

*Pertinent specs regarding size:

-*Weight: between 7.4 - 9.6 lbs.
*Can vary some as this is a handmade wheel, and differing woods have different density.
-**Dimensional data: With the MOA, and tensioner knob removed for transport, the size of a single treadle Sabrina, when folded, is 14 inches wide x 19 inches tall x 8 inches deep. (Double treadle when folded is 9 - 9.5 inches)
**Again, some dimensions may vary due to this being a handmade wheel

Price includes oil free bearings on wheel axle and treadle, metal wheel and flyer, two whorls with one ratio each. 3 bobbins included with precision ball bearings for smooth operation.

 Fancy threading hook included.

Optional Extras

Extra Bobbins: $44 each

Double Treadle option for Cherry: $90

Double Treadle option for Walnut wheels: $95

Double Treadle option for Birdseye Maple and Swiss Pear wheels: $105

Scotch tension option: $15

Additional Whorls: Additional whorls available for $30 each

Flyer Specifications:
The flyer is double drive

Whorls
Whorl ratios:
  6:1 and 8:1
7:1 and 9:1 ratios also available as optional additional whorls

(While the 9:1 ratio is available, it comes without the recommendation of the maker. This size is better suited for use with scotch tension, but will also work in double drive, providing user expectations are not set too high.)

Threading eye
5/16" inside diameter orifice is standard for this wheel


Customer pays only actual shipping charge at time of receipt
per current UPS rates
.
